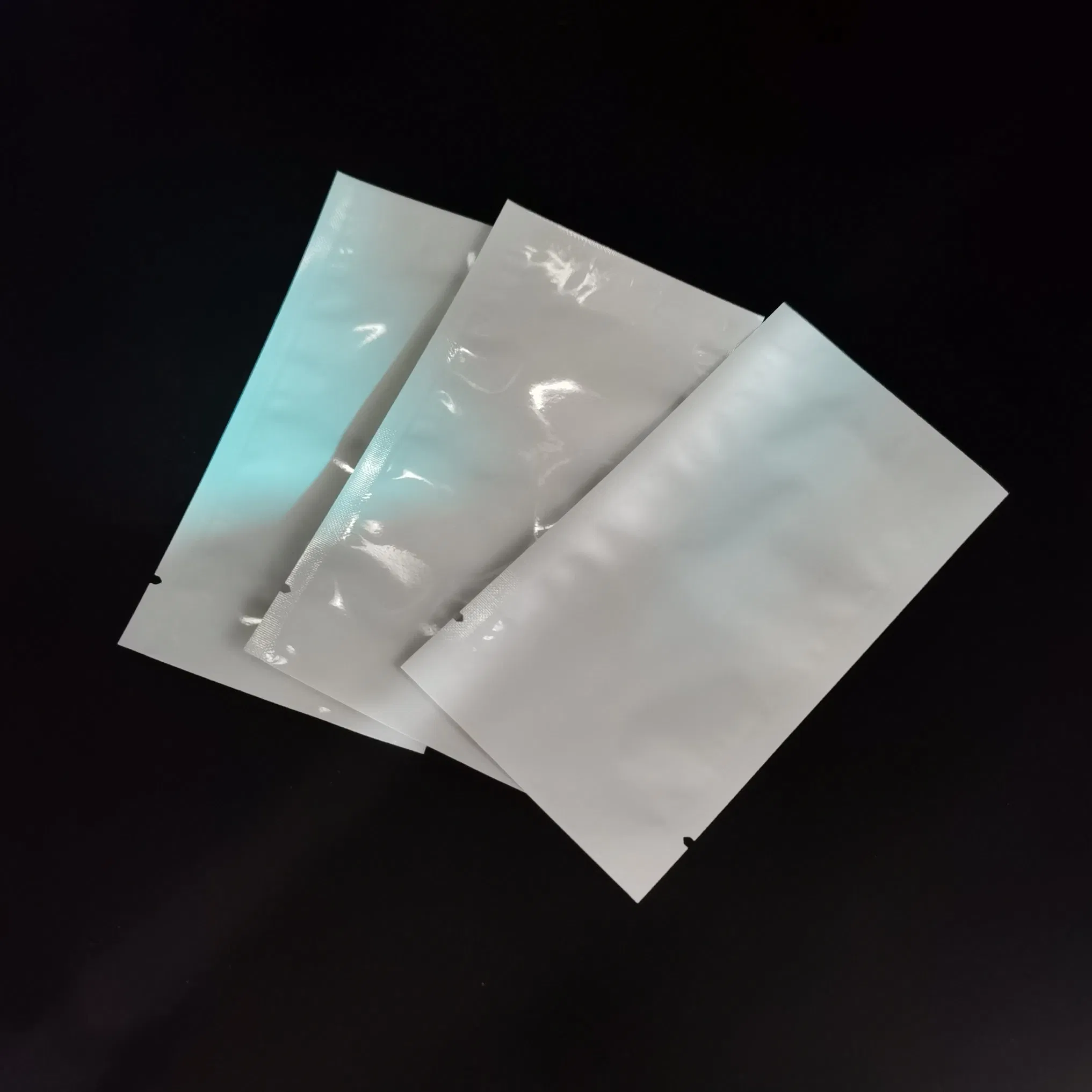

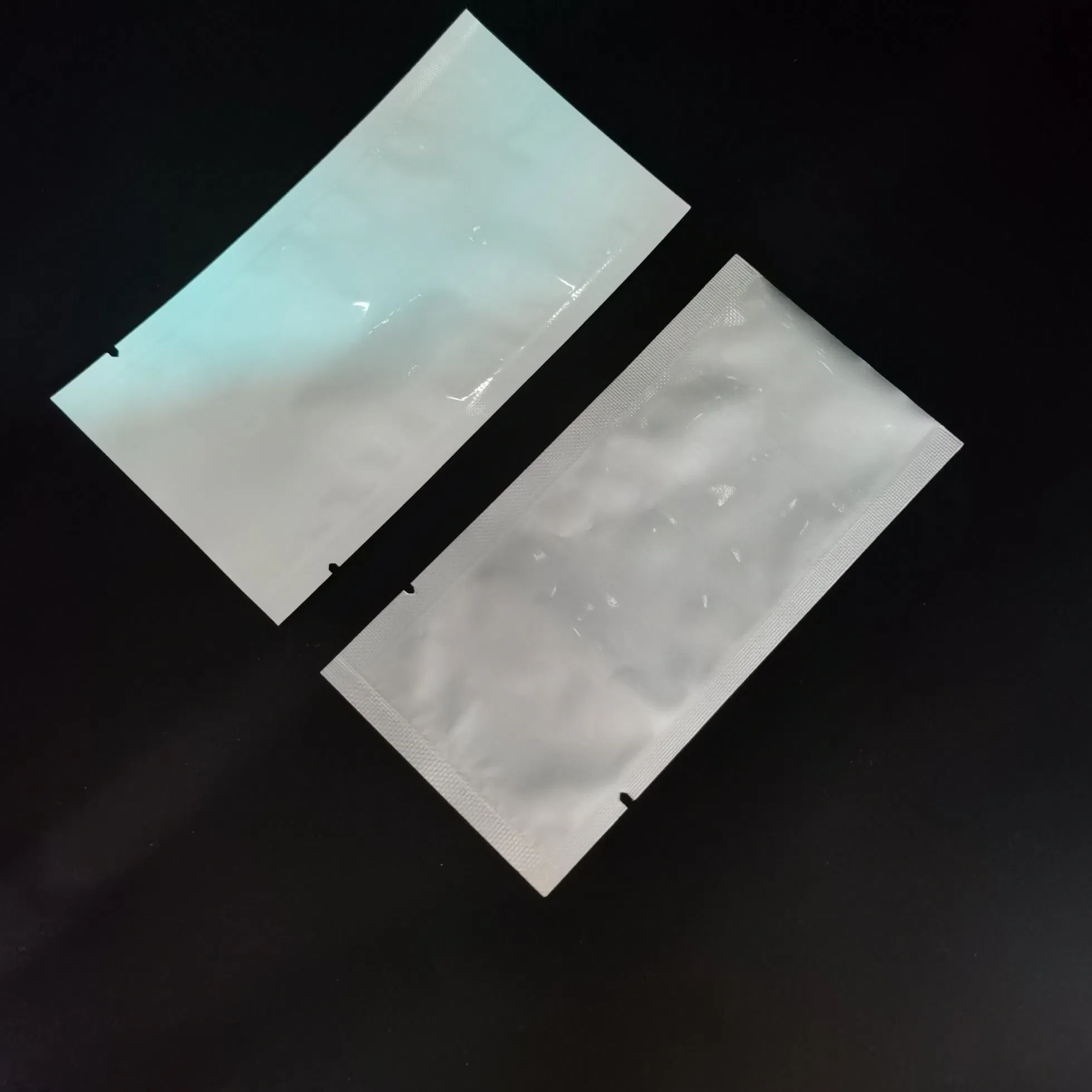

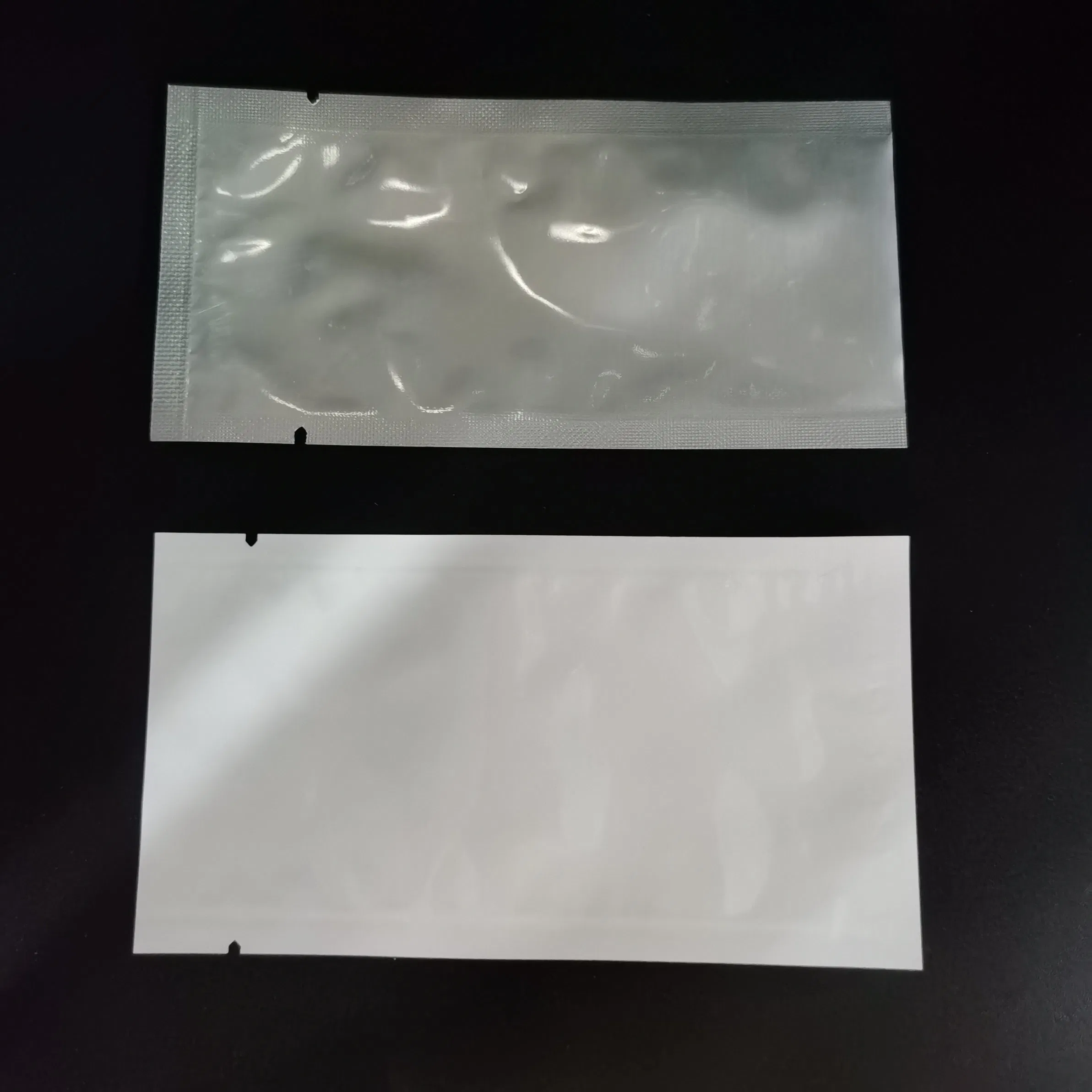

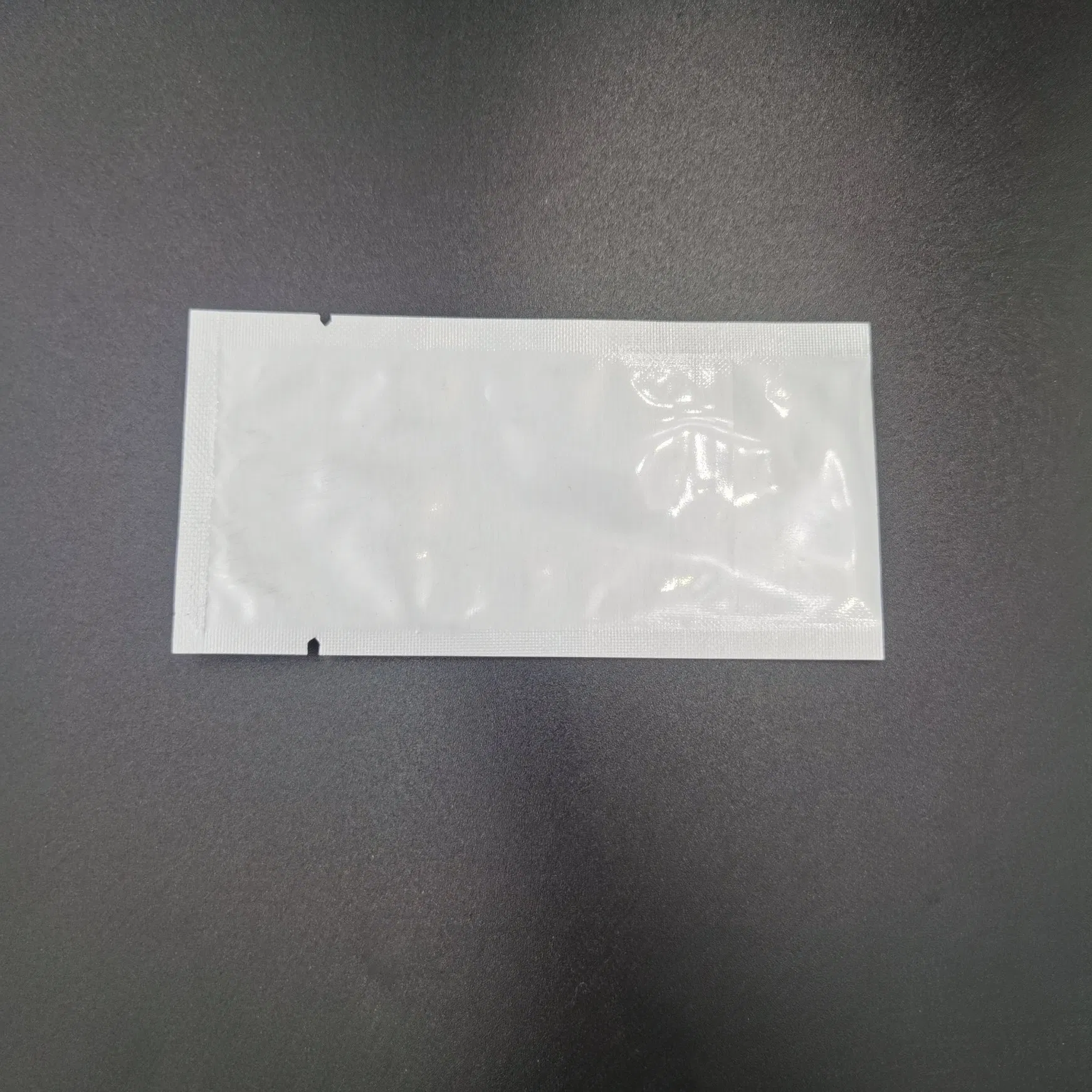

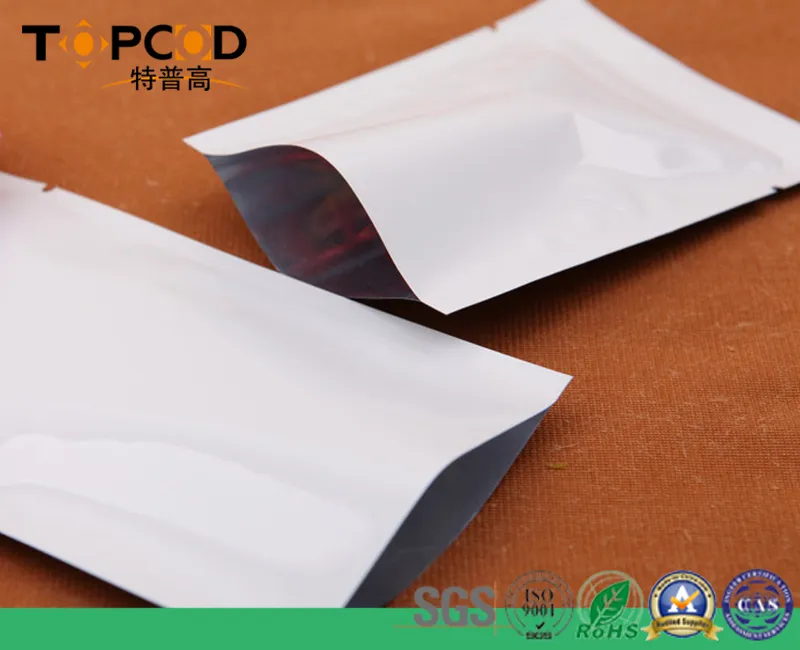

Mositure Barrier Plastic Pouch for Packing Rapid Diagnostic Test Kit
Product DescriptionMoisture-proof vacuum bag, also known as Aluminum foil bag, Aluminum-plastic composite vacuum bag, vacuum bag, moisture-proof bag, using imported high quality raw materials formed a production by automatic assembly line, the bag with a standard of moisture-proof logo, has six func......
Send Inquiry
Product Description
Moisture-proof vacuum bag, also known as Aluminum foil bag, Aluminum-plastic composite vacuum bag, vacuum bag, moisture-proof bag, using imported high quality raw materials formed a production by automatic assembly line, the bag with a standard of moisture-proof logo, has six functions of anti-static, resistance of the electromagnetic interference and moisture proof, high barrier, with good puncture ability of water proof and oxygen proof. The bag should passed the GB & ASTM test and satisfied the strictest environmental protection standard of packing materials in EU and North America. It suitable for the electronics packing that has the requirement of moisture proof. Surface resistance is 108-1010Ω, static release time is less than 0.05 seconds.
| Thickness | 140±10μm (Total thickness of layer of glue and static is 5-10μm) Z | |
| Physical properties | Material | Parameters |
| Lay 1 | Polyester (PET) | 12μm |
| Lay 2 | Aluminum foil (AL) | 7μm |
| Lay 3 | Nylon (NY) | 15μm |
| Lay 4 | Polyethylene (PE) | 100μm |
| No. | Test item | Technical requirements | Test standard |
| 1 | Performance of Anti-static | 1x105Ω<resistance of outer surface<1x109Ω 1x105Ω<resistance of internal surface<1x1011Ω Metal layer<1x100Ω | ANSI/ESD STM 11.1 |
| Friction voltage: <100V | ESD ADV 11.2 | ||
| 2 | Electrostatic shielding | Remanent shield voltage: <20V | EIA 541 |
| 3 | EMI Attenuation | >60 dB | MIL-PRF-81705 |
| 4 | Life time | After using 1 year, still meet the requirements of No. 2/3/4 | MIL-PRF-81705 |
| 5 | Structure | PET/ AL/ NY/ PE | |
| 6 | Thickness | > 0.14 mm | |
| 7 | Size | Refer to drawing's marks | |
| 8 | Heat-seal strength | > 30N/ 15mm | |
| 9 | Tensile strength (vertical and horizontal direction) | Vertical >75N/ 15mm Horizontal >85N/ 15mm | |
| 10 | Heat-seal condition | Temperature: 300-400F Time: 0.6-4.5 seconds Pressure: 30-70 PSI | |
| 11 | Peel strength | >3.0N/ 15mm | |
| 12 | Puncture resistance | >100N | MIL-STD-3010 |
| 13 | Water vapor permeance | J-STD-033 0.002mg/100 in2 /24h | ASTM F 1249-13 |
