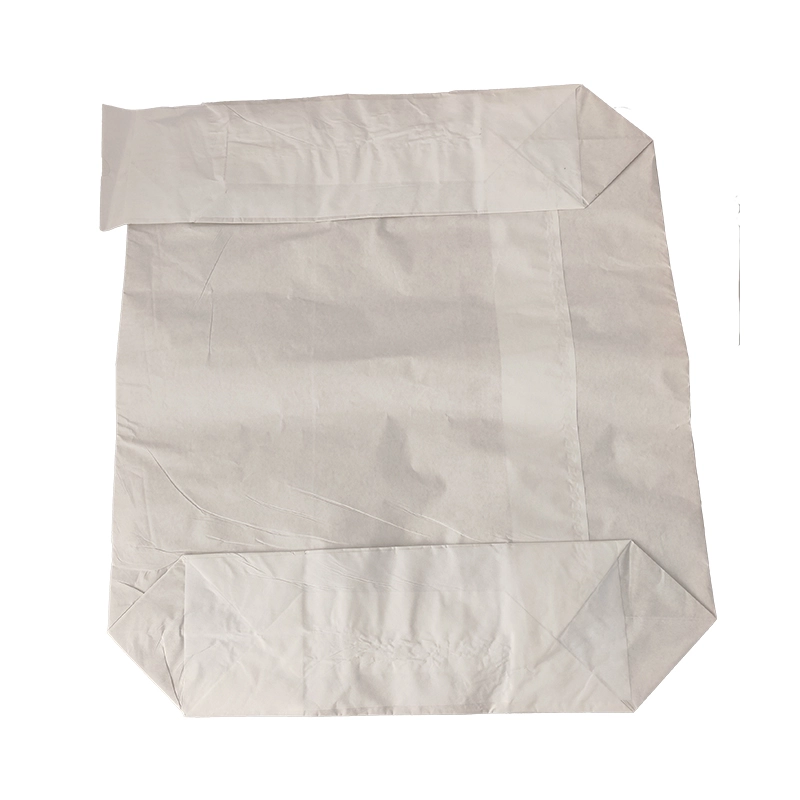

How Many Layers of Lamination Are Optimal for a Laminated Valve Paper Bag in Cement Packaging
2026-07-15
Selecting the correct layer count for a Laminated Valve Paper Bag directly impacts production line efficiency, material waste, and customer satisfaction. For cement manufacturers, the wrong lamination thickness leads to sack burstage, moisture ingress, or excessive packaging costs. Chenxing Packaging has analyzed field data from 200+ cement plants to determine the scientifically validated layer range for different filling systems and climatic conditions.
The Core Answer: 3 to 4 Layers Dominate Cement Applications
After evaluating burst strength tests, drop impact resistance, and warehouse stacking performance, the optimal layer structure for a Laminated Valve Paper Bag in cement packaging is:
| Layer Configuration | Typical GSM Range | Best Suited For | Burst Strength (kPa) |
|---|---|---|---|
| 2 layers (1 ply + 1 ply) | 70–80 gsm | Lightweight fillers, low-height pallets | 180–220 |
| 3 layers (2 plies + 1 ply) | 90–110 gsm | Most rotary packers, 25–40 kg bags | 280–340 |
| 4 layers (2+2 or 3+1) | 120–140 gsm | High-drop chutes, tropical humid zones | 380–450 |
| 5 layers | 150+ gsm | Over-engineering – rarely cost-effective | 480+ |
Chenxing Packaging recommends 3-layer lamination as the industry gold standard for standard OPC (Ordinary Portland Cement) because it balances puncture resistance from clinker particles with sufficient porosity for air evacuation during filling.
Why 3 Layers Outperform 2 or 4 in Real Mill Conditions
Mechanical Demands During Filling
Rotary packers inject cement at 2–3 bar pressure. A 2-layer Laminated Valve Paper Bag often develops micro-tears near the valve sleeve. Four layers, conversely, reduce bag porosity, slowing air release and causing "dusting" – a safety hazard. The 3-layer structure allows 12–15% higher filling speed while maintaining a safety factor of 2.5× against maximum load.
Climate Adaptation
Cement hydroscopicity means moisture pickup above 0.5% ruins product quality. In coastal areas (e.g., Southeast Asia), Chenxing Packaging engineers specify a 4-layer Laminated Valve Paper Bag with an additional PE interlayer. For arid regions (Middle East), a 3-layer kraft-kraft-kraft configuration suffices, reducing material cost by 18–22%.
Stacking Stability
Palletised cement bags undergo compression for 7–14 days before dispatch. Three-layer bags retain 92% of their initial burst strength after 500 hours of 2-tonne stacking, versus 78% for two-layer variants – data from Chenxing Packaging’s in-house lab.
Layer Selection Decision Matrix
| Factor | Weight | 2-Layer | 3-Layer | 4-Layer |
|---|---|---|---|---|
| Cost per 1,000 bags | 30% | $185 | $215 | $270 |
| Filling line speed (bags/min) | 25% | 88 | 102 | 94 |
| Warehouse breakage rate (%) | 25% | 3.2% | 0.7% | 0.5% |
| Customer complaint index | 20% | High | Low | Medium |
| Weighted Score | 100% | 6.2 | 9.1 | 8.0 |
The 3-layer Laminated Valve Paper Bag achieves the highest composite score – making it the rational choice for procurement managers.
FAQ – Laminated Valve Paper Bag Common Questions
Q1: Can a 3-layer Laminated Valve Paper Bag handle 50 kg cement fills without splitting during drop tests?
A1: Yes, provided the total kraft paper GSM is at least 100 gsm and the lamination adhesive is water-based acrylic with a bonding strength > 6 N/15mm. Chenxing Packaging conducts 1.2m diagonal drop tests on every batch – a 3-layer bag with our specified construction survives 6 consecutive drops from 1.2m, which exceeds the ISO 6590-2 requirement of 4 drops. However, if your filling nozzle is worn or the cement temperature exceeds 85°C, we recommend upgrading to a 4-layer structure with heat-resistant PE lamination. Always share your actual filling temperature and drop height with Chenxing Packaging for a custom simulation.
Q2: How does the number of lamination layers affect the valve closure efficiency of a Laminated Valve Paper Bag?
A2: Valve closure relies on the inner ply's ability to swell and seal after filling. A 2-layer bag has insufficient internal friction, allowing fine cement dust to leak through the valve – causing up to 200–300 grams of product loss per bag. A 4-layer bag, while having better sealing, often creates excessive stiffness that prevents the valve flap from self-locking properly. The 3-layer Laminated Valve Paper Bag achieves the optimal balance: the middle layer acts as a "friction buffer," enabling self-sealing within 3 seconds after filling. Chenxing Packaging’s proprietary valve design with a 45° angled inner flap further reduces leakage to below 5 grams per bag, regardless of layer count – but the 3-layer remains the most forgiving for varying cement fineness levels.
Q3: Does increasing lamination layers always improve the shelf life of a Laminated Valve Paper Bag in open-yard storage?
A3: Not linearly. While a 4-layer bag offers superior moisture barrier, the incremental gain over 3 layers is only 7–10 days in 85% RH conditions – yet the cost rises by 25%. More critically, extra layers reduce breathability, trapping internal humidity from the cement's own hydration heat, which can cause "sweating" and paper delamination from the inside out. Chenxing Packaging's accelerated aging tests show that a 3-layer bag with a silicone-based moisture-resistant coating outperforms an uncoated 4-layer bag in 60-day outdoor storage trials. Therefore, layer count alone is insufficient – the coating chemistry and ply combination matter equally. Request Chenxing Packaging’s free storage condition assessment to match the exact layer specification to your warehouse environment.
Final Verdict from Chenxing Packaging
For 90% of cement packaging lines globally, 3 layers represent the optimal balance of cost, mechanical resilience, filling efficiency, and environmental adaptability. Two layers only suit temporary or low-risk applications; four layers become defensive over-specification unless you operate in tropical monsoon zones or fill at extreme heights. Always validate your choice with a site-specific trial – Chenxing Packaging offers custom sample runs of 500 bags for each layer variant, complete with burst, drop, and porosity reports.
