Aluminum Can Lids Beer Can Lids
Specification1. Material Specification1.1 End Stock 1.1.1 Gauge0.224mm ±0.005mm1.1.2 MaterialAluminum Alloy 51821.1.3 TemperH19/H38/H39/H481.2 Tab Stock 1.2.1 Gauge0.270mm ±0.005mm1.2.2 MaterialAluminum Alloy 51821.2.3 TemperH38/H39/H482.Coating Type 2.1 External LacquerEp......
Send Inquiry
Product Description
Specification
Workshop and Warehouse
Laboratory
Certificates
Packaging & Delivery
Packing Details:
Package: Plywood/Plastic Pallets or as per customer's requirement
Pallets size: L1.12m * W1.42m
Delivery time : 15-30 days after received deposit
Shipment: generally 40'HQ for ocean shipment
FAQ
1, What's your main performance?
1) 300 million RMB sales volume in 2017.
2) 360 employees .
3) complete production and testing equipment
4) accept customized requirements.
2, When can I get the quotation?
Within 12 hours after getting the inquiry. if you are very urgent to get the price, please call us to give complete specifications and price will be sent soon.
3, How long is your delivery time?
Usually within 21 working days after payment, mainly according to the quantity.
4, Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
5, What's your mission?
Provide safe, environmentally-friendly, good quality aluminum cans to our customers.
Contact Information
QINGDAO BAIXI INDUSTRY CO.,LTD.
Add:RM 1112, Tian Xiang International Building 5, No. 600 Zhujiang Road, Huangdao District, Qingdao City, Shandong Province
Zip Code:266500
| 1. Material Specification 1.1 End Stock | |
| 1.1.1 Gauge | 0.224mm ±0.005mm |
| 1.1.2 Material | Aluminum Alloy 5182 |
| 1.1.3 Temper | H19/H38/H39/H48 |
| 1.2 Tab Stock | |
| 1.2.1 Gauge | 0.270mm ±0.005mm |
| 1.2.2 Material | Aluminum Alloy 5182 |
| 1.2.3 Temper | H38/H39/H48 |
| 2.Coating Type | |
| 2.1 External Lacquer | Epoxy/Polyester |
| 2.2Internal Lacquer | Epoxy/Polyester |
| 2. Lining Compound 3.1 Lining Compound Type | Water Based Compound |
| 3.2 Compound Weight | 20-40mg |
| 4. Physical Specification | |
| 4.1 Outside Curl Diameter | 59.44 ±0.25mm |
| 4.2 Curl Height | 2.03 ±0.15 mm |
| 4.3 Countersink Depth | 6.86 ±0.13 mm |
| 4.4 Curl Opening | ≥2.72 mm |
| 4.5 Ends Per 2 inch | 24 -27 Pcs |
| 5.Functional Specification | |
| 5.1 Pop | 10.0-25.0N |
| 5.2 Push | 13.0-30.0N |
| 5.3 Tab Strength | 30.0-40.0N |
| 5.4 Buckle | ≥620 kPa(90Psi) |
| 5.5 ERV | Max≤15mA, Avg ≤5mA |
| Recommendation Of Seaming | ||
| Quality Characteristics | Set-up | Working parameters |
| Gauge ( Tc=End/Tb=Body ) | Tc=0.224 mm Tb=0.17mm | |
| 1st Seam Thickness(TC) | 2.08 ±0.15mm | N/A |
| 2nd Seam Thickness(T) | 1.15 ±0.03mm | 1.15 ±0.05mm |
| Chuck Thickness | 6.80mm ( Depending on the models) | |
| Seam Width(W) | 2.55 ±0.15mm | 2.55 ±0.20mm |
| Counter Sink(CS) | 6.86 ±0.13mm | 6.86 ±0.15mm |
| Body Hook(BH) | 1.65 ±0.15mm | 1.65 ±0.20mm |
| Cover Hook(CH) | 1.65 ±0.15mm | 1.65 ±0.20mm |
| Overlap Length(OL) | ≥0.89mm | ≥0.76mm |
| Overlap Rating | ≥52% | ≥50% |
| Tightness Range | ≥90% | ≥80% |
| Note: 1. Double seaming thickness recommendation: body thickness *2+end thickness*3+ (0.10-0.20 ) mm. 2. The above seaming specification is subject to1st and 2nd seaming groove. | ||
| MOQ | Printed: 1*40HQ Unprinted: 1*40HQ |
| Usage | Packing Beer/Juice/Beverage |
| Payment | T/T(70% prepaid as deposit, the balance 30% before shipment ) |
| Hs Code | 8309900000 |
| Color | Blue/Black/Golden |
| Origin | China |

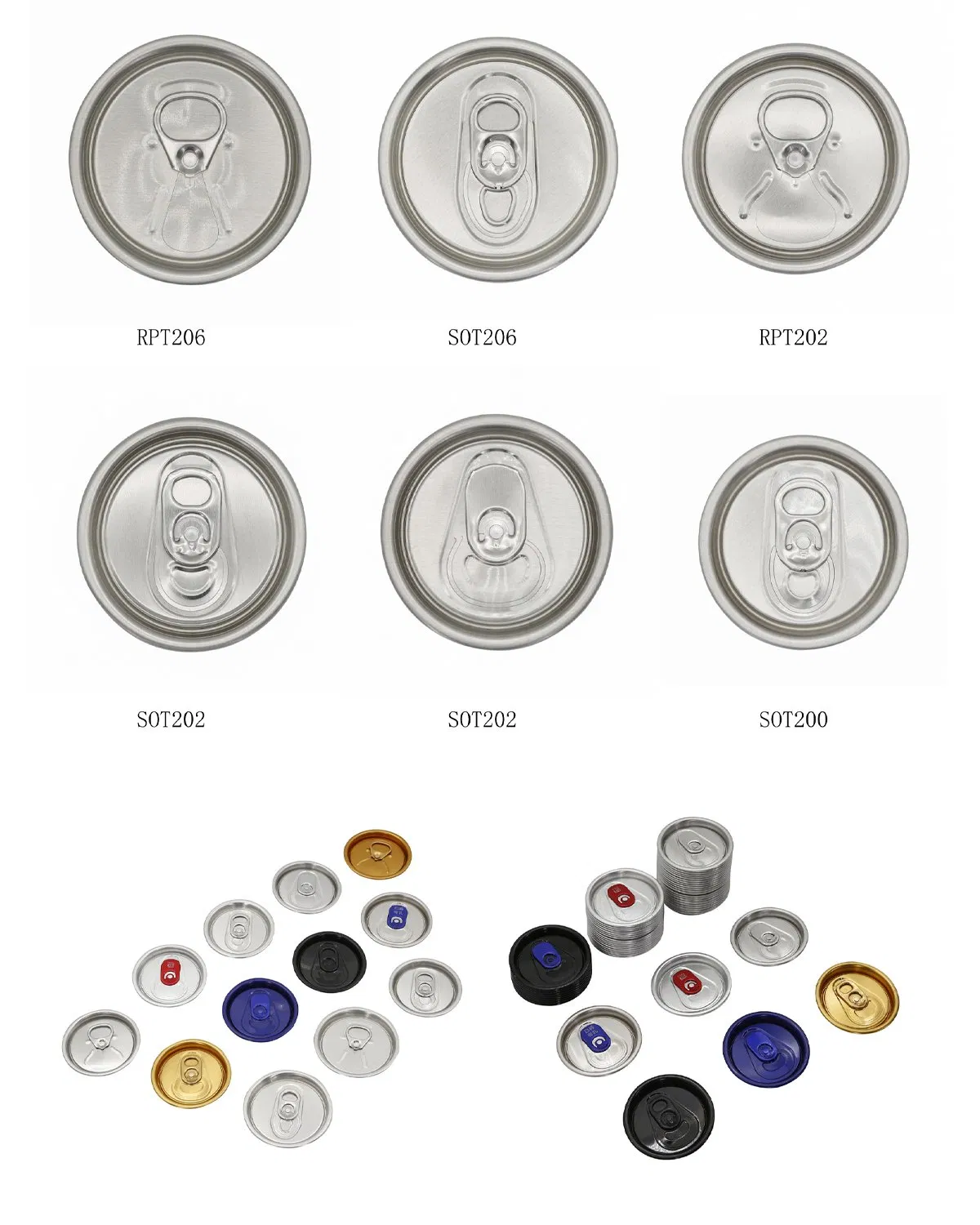

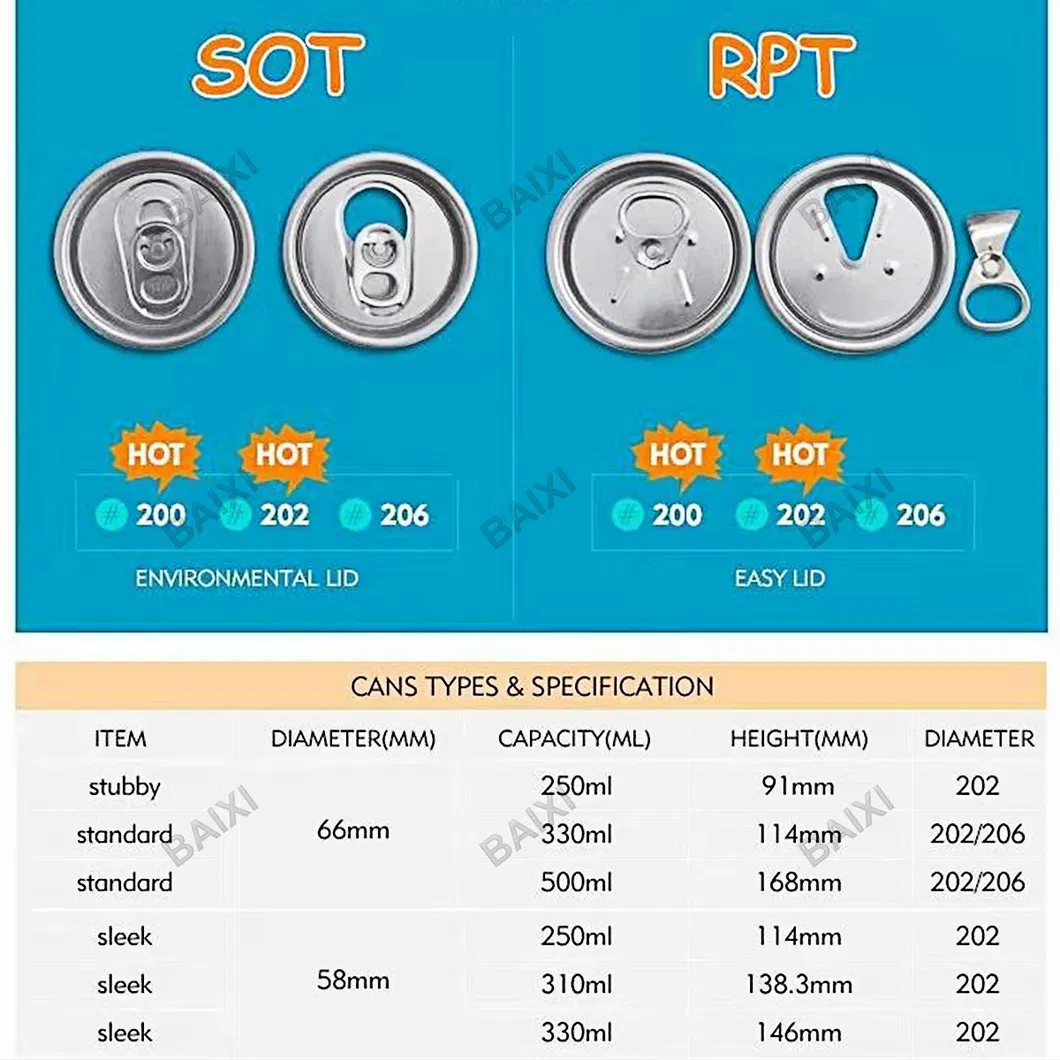

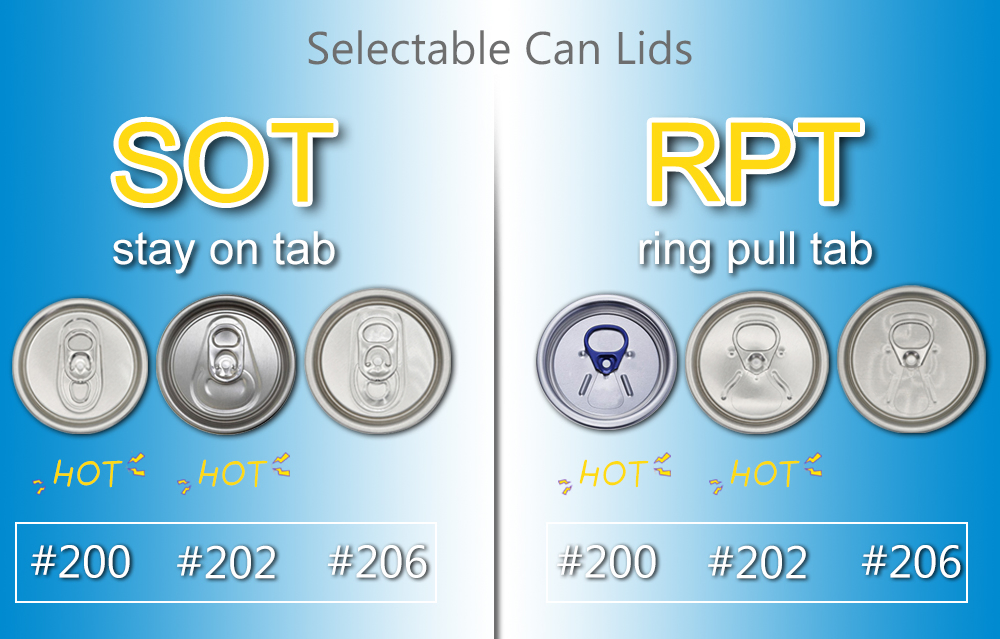

| Opening Type | SOT/RPT |

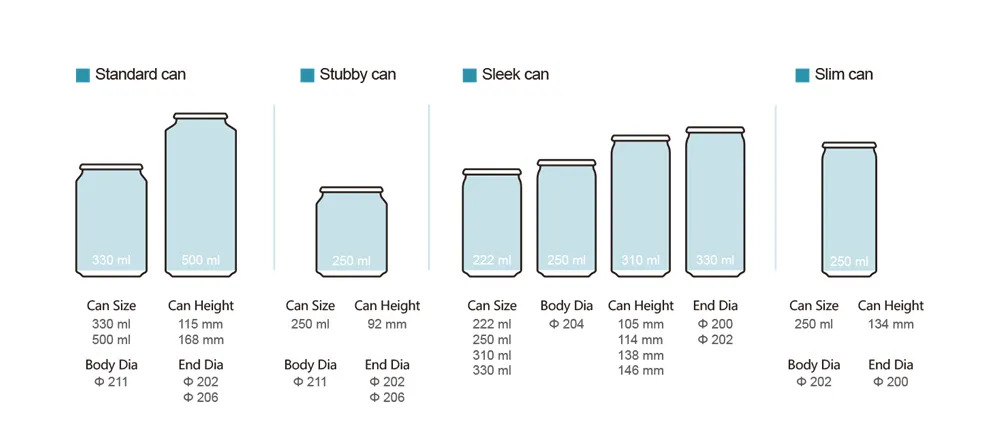

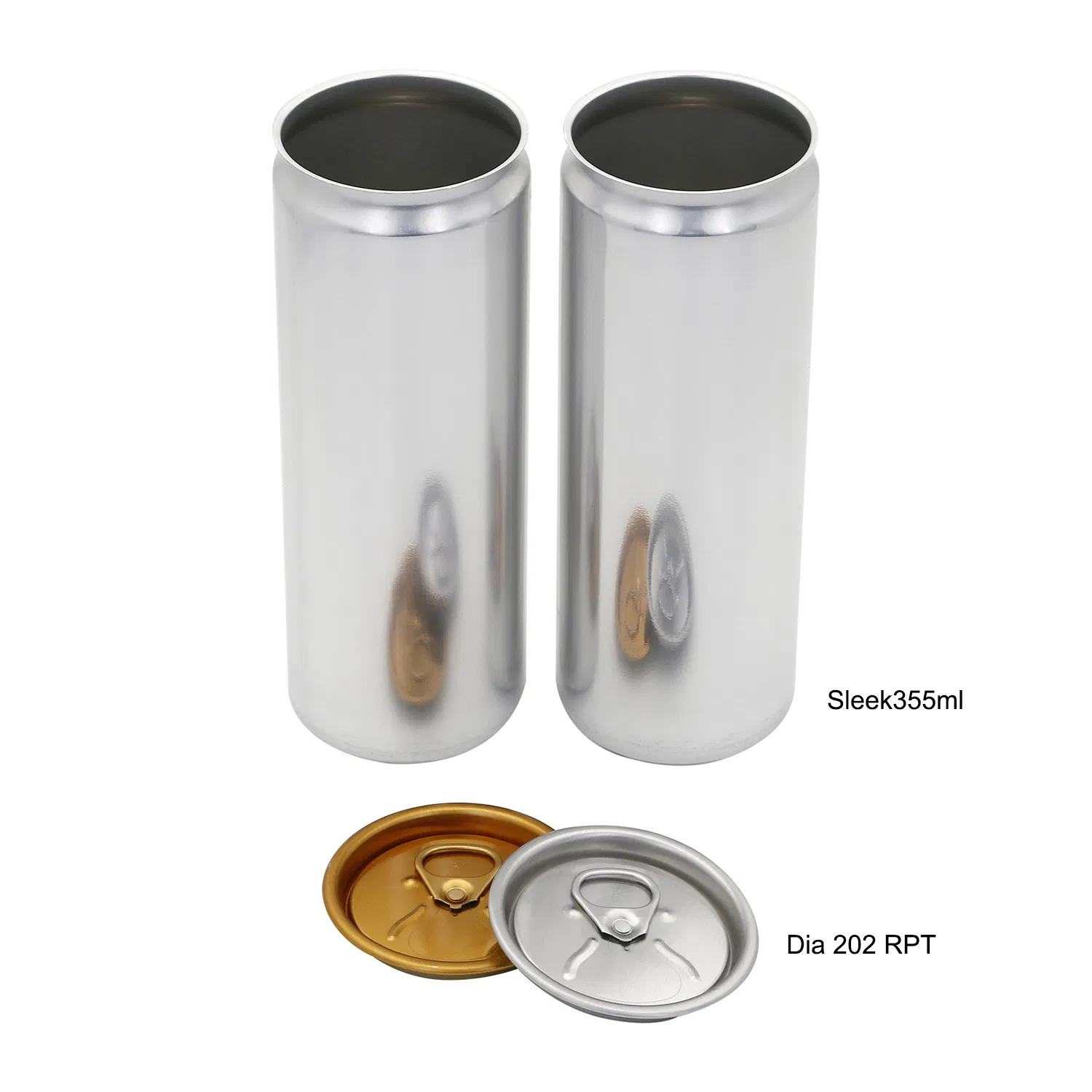

| Can Lid | 202 Dia/200Dia/206Dia |
| Logo | Customized logo or design is acceptable |
| Delivery Time | Within 21 working days after payment |

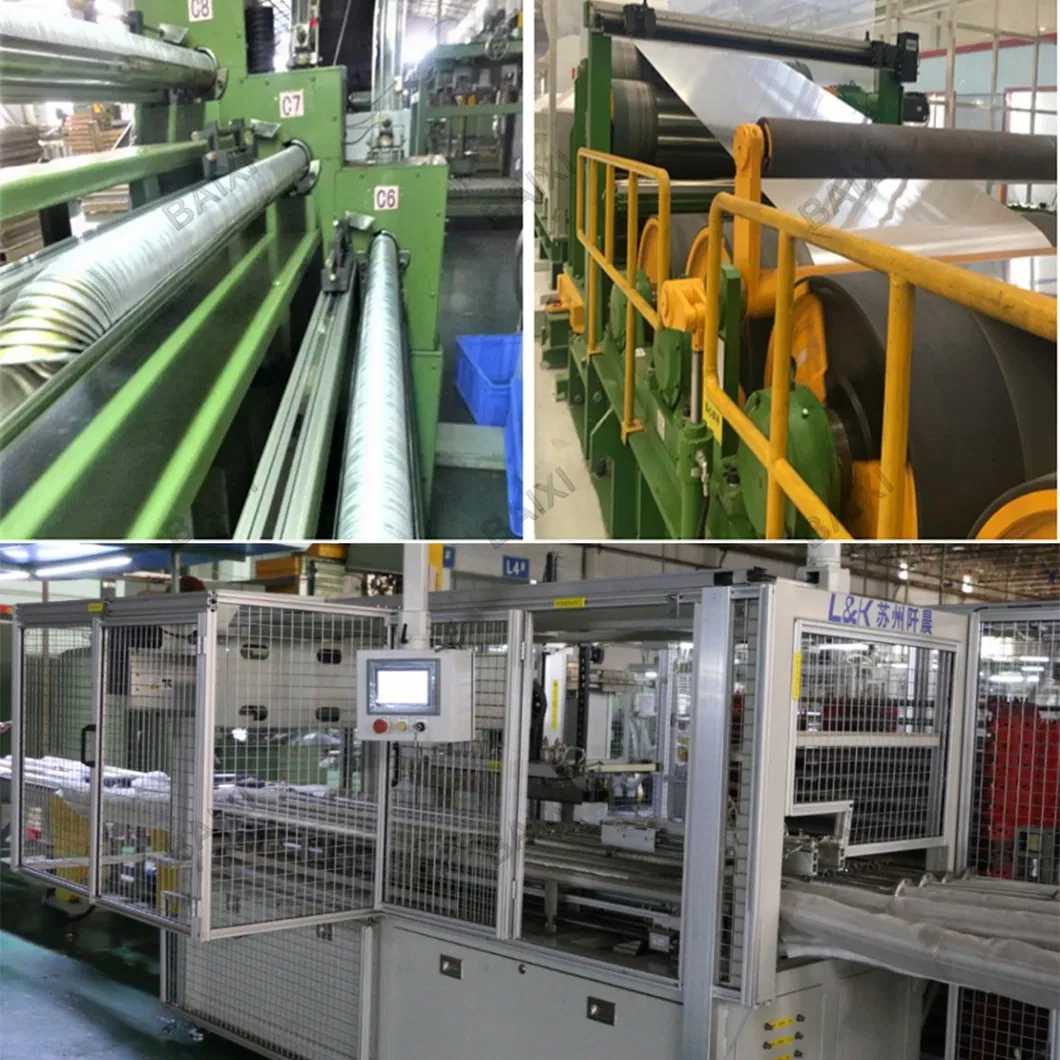

Workshop and Warehouse

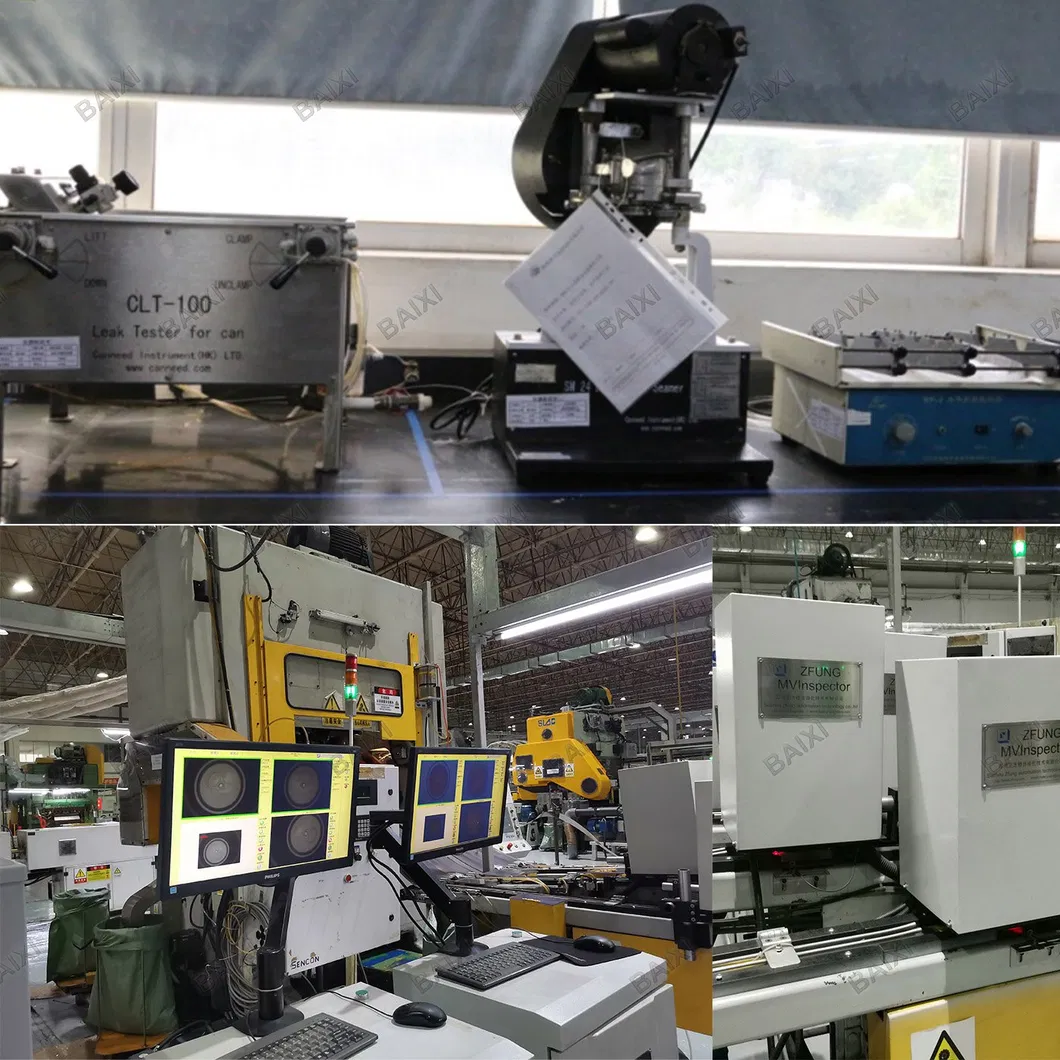

Laboratory
Certificates

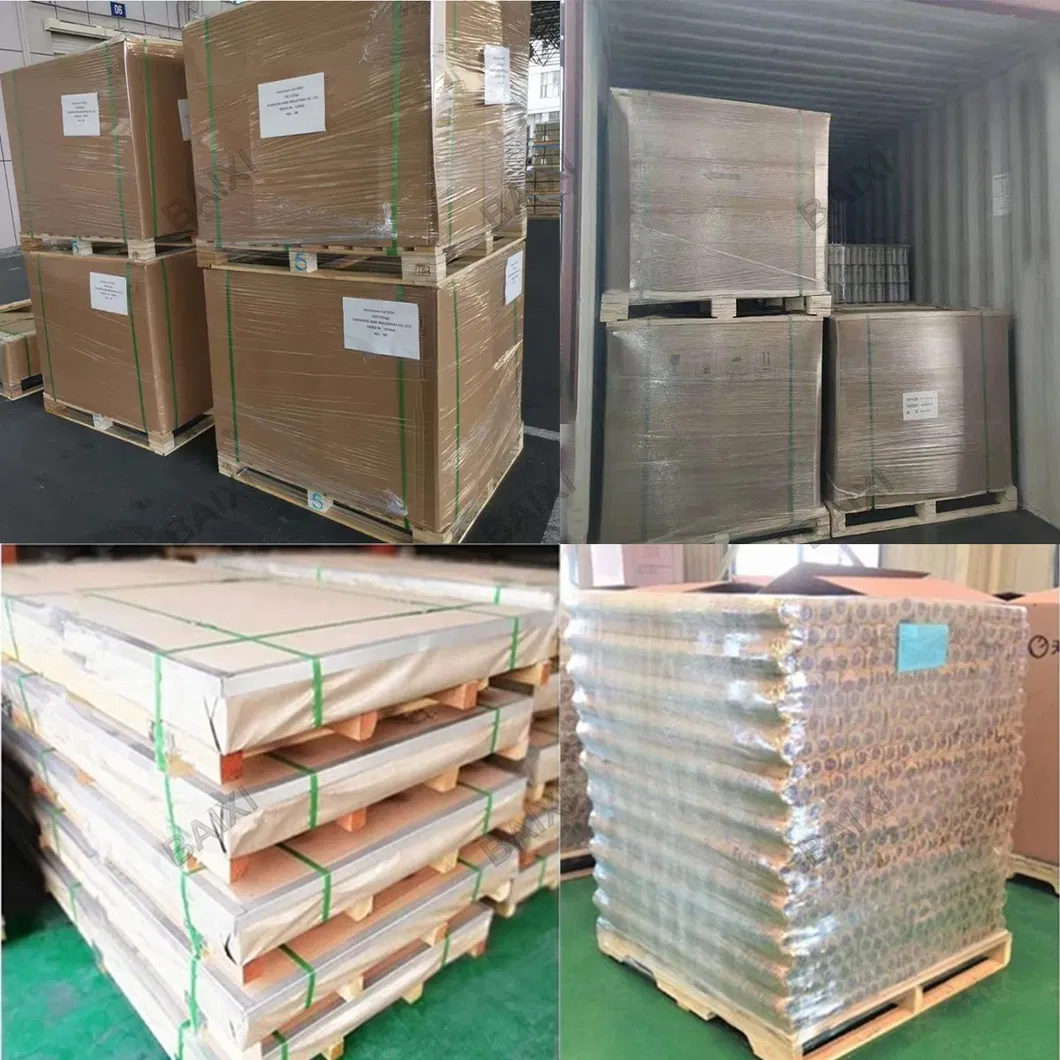

Packaging & Delivery
Packing Details:
Package: Plywood/Plastic Pallets or as per customer's requirement
Pallets size: L1.12m * W1.42m
Delivery time : 15-30 days after received deposit
Shipment: generally 40'HQ for ocean shipment
FAQ
1, What's your main performance?
1) 300 million RMB sales volume in 2017.
2) 360 employees .
3) complete production and testing equipment
4) accept customized requirements.
2, When can I get the quotation?
Within 12 hours after getting the inquiry. if you are very urgent to get the price, please call us to give complete specifications and price will be sent soon.
3, How long is your delivery time?
Usually within 21 working days after payment, mainly according to the quantity.
4, Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
5, What's your mission?
Provide safe, environmentally-friendly, good quality aluminum cans to our customers.
Contact Information
QINGDAO BAIXI INDUSTRY CO.,LTD.
Add:RM 1112, Tian Xiang International Building 5, No. 600 Zhujiang Road, Huangdao District, Qingdao City, Shandong Province
Zip Code:266500
